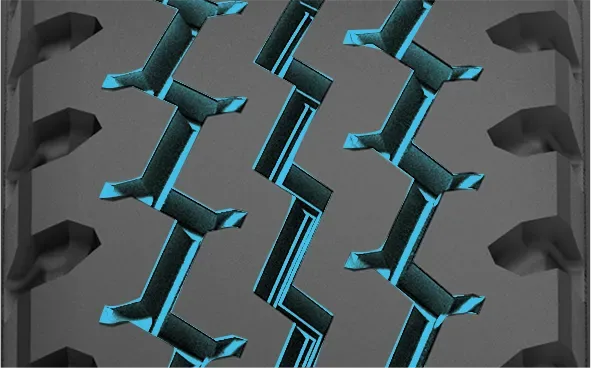

Four rib design with zigzag patterns for stone protection.

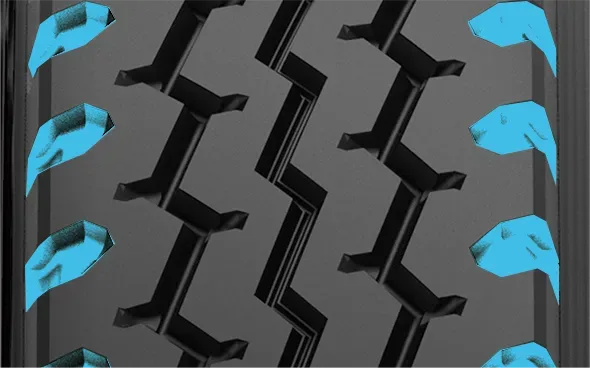

Deep arrowhead shoulder grooves for maximum traction in rough terrain situations.
Unique compound,with extra-deep tread design, for extended tread life.
Spec
- 16"
- 20"
- 24"
- 22.5"
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 7.00R16LT | 118/114L | 14 | 5.50F | 10.0 | 775 | 200 |
| 7.50R16LT | 122/118L | 16 | 6.00G | 11.0 | 805 | 215 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 9.00R20 | 144/142K | 16 | 7.0 | 15.0 | 259 | 1019 |
| 10.00R20 | 146/143K | 16 | 7.5 | 16.0 | 1054 | 278 |
| 10.00R20 | 149/146K | 18 | 7.5 | 16.0 | 1054 | 278 |
| 11.00R20 | 152/149K | 18 | 8.0 | 15.0 | 1085 | 293 |
| 12.00R20 | 156/153K | 20 | 8.5 | 17.5 | 1125 | 315 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 12.00R24 | 160/156K | 20 | 8.5 | 14.0 | 1226 | 315 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 11R22.5 | 148/145M | 18 | 8.25 | 15.0 | 1054 | 279 |
| 12R22.5 | 152/149L | 18 | 9.00 | 14.5 | 1085 | 300 |
| 13R22.5 | 156/151K | 20 | 9.75 | 16.5 | 1124 | 320 |
| 295/80R22.5 | 152/149M | 18 | 9.00 | 15.0 | 1044 | 298 |
| 315/80R22.5 | 157/154K | 20 | 9.00 | 15.5 | 1076 | 312 |
