TRANS MASTER EDM360
Superior drive tyre for on/off road applications.
Performance
Truck&Bus
M+S
Mix Service

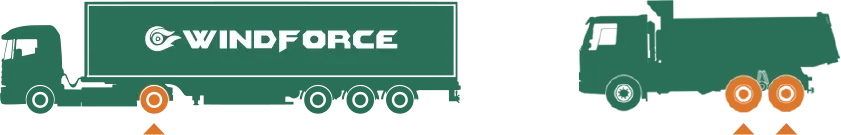

Drive
Traction
Get a one-stop solution
In order to make sure your question or comment reaches the right people, please fil out the brief form and we’ll respond as soon as possible Your private information is absolutely protected.

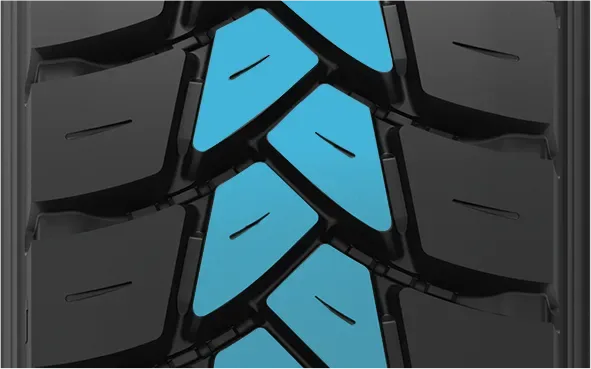

The arrow-directional pattern is adopted for excellent handling meaning better traction performance is provided even in wet and muddy conditions.
The interblock tie-bar at the centre guarantees outstanding straight driving performance and impact dispersion for blocks, thereby improving durability.

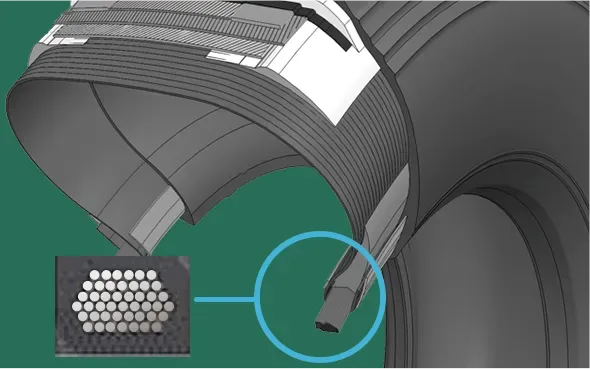

Rigid carcass structure for robust, hardwearing, safe and reliable service.
Spec
- 22.5"
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 11R22.5 | 148/145K | 18 | 8.25 | 19.5 | 1065 | 279 |
| 12R22.5 | 152/149L | 18 | 9.00 | 19.5 | 1096 | 300 |
| 13R22.5 | 156/151K | 20 | 9.75 | 19.0 | 1136 | 320 |
| 295/80R22.5 | 152/149K | 18 | 9.00 | 19.5 | 1050 | 298 |
| 315/80R22.5 | 157/154K | 20 | 9.00 | 20.0 | 1082 | 312 |
